10Tpd Batch And Physical Oil Refining Coconut Vegetable Oil Refinery Plant

FOB Reference Price:Get Latest Price
$8,000.00 - $25,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
HDC15
Power:
235KW
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Customized packaging (Min. Order: 1 Units)

More

Graphic customization (Min. Order: 1 Units) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Farms
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
Kenya, South Korea
Showroom Location:
None
Condition:
New
Usage:
cooking oil refining
Type:
oil refining production line
Automatic Grade:
Automatic
Production Capacity:
30TPD to 300TPD
Place of Origin:
Henan, China
Brand Name:
HDC
Voltage:
380V
Dimension(L*W*H):
48m*12M*15M(30TPD)
Weight:
30Ton
Certification:
CE,ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Key Selling Points:
High Productivity
Performance:
high quality,stable,High efficient, large capacity
Operation:
easy to learn
sections:
pretreatment, pressing, refining
Price:
low,for sale
Oil rate:
refining ≥ 97%, cake residual: ≤ 6%
Materials:
carbon steel & stainless steel
Raw material:
cooking oil
scale:
mini, small, large scale
Processing Types:
Edible Oil,cooking oil
Application:
Crude Oil Refining
Supply Ability
Supply Ability:
3 Unit/Units per Month Rice Bran Oil Equippment
Packaging & Delivery
Packaging Details
Plywood, international standard trade packing
10Tpd Batch And Physical Oil Refining Coconut Vegetable Oil Refinery Plant
Port
Qingdao,Wuhan,Shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Product Description

In order to get pure and relatively high quality edible oil after pressing, the crude oil refinery will use our refining equipment to remove impurities in the oil. such as saponin,fatty acid, phosphatide, pigment. The refined oil reaches the edible oil standard while finished refining process.

Produtc Process

depending on the oil, the production process different crude oil, customer demand for products of different, the size of the processing and refining method is different, our company's refining equipment is divided into three types: batch refining equipment and semi continuous refining equipment and continuous refining equipment.

Our oil refining line Application:

Our refining machine is suitable for refining various of crude oil, vegetable oil, such as palm kernel oil, sunflower seed oil, tea seed oil, peanut oil, soybean oil, corn oil, groundnut oil, rapeseed oil and so on.

Our oil refining line Advantage:

1.304/316 SUS
2.Customized crude oil refining line capacity. We customize plant as per your requirement for the capacity.
3. Flexible usage. The crude oil refining line can work independently or together with whole oil production line.
4. Two sets centrifugal machine make sure all continuous production , degumming result is very good.
5.The refined oil has high quality and is good for long time storage.
6. Oil can reach national standard(LEVEL 2), it can be sold in supermarket.

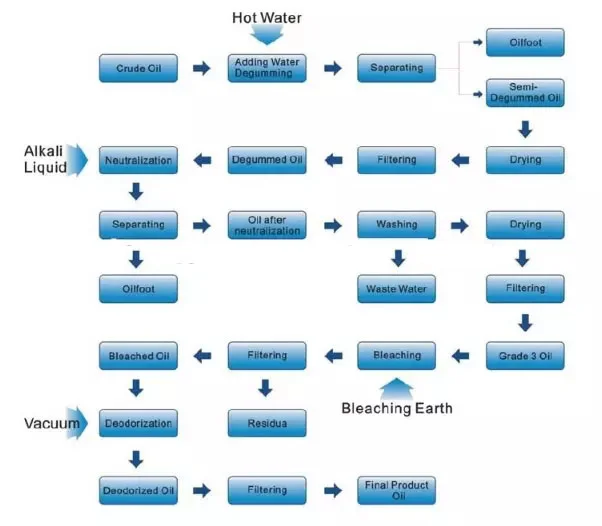

Main Process

(1)P-acid degumming operation:
Drawing the filtered or settled crude oilinto the neutral pot, control oil temperature 40 ° C, liquidlevel cover theneutral pot volume about 80 %.Add into theneutral pot Pacid with 85% concentration, 0.1-0.2% oil weight.Start up neutral pot, make main shalf stirring at 60-70 r/min, finish de-gumming in 30 min.
Adjust the neutral pot oil temp to about 85 °C, add into hot water whose temp higher oil temp 10-15° C, the water use amount each time is 10-15% oil weight.
(2)alkali de-acid operation
After finish degumming process, at once add into lye carrying alkali refining deacid, lye concentration 16 ° Be ′, super alkali is 0.1to0.3% oil weight, after finish adding, continuous stirring 30min, when soap particles accumulated condensing, should reduce stirring speed, 30r/min avoid emulsion. After adding alkali, gradually rising temp to the end temp 65 ° C, see to that the rising temp speed should control at 1 degree per minute, not too fast. Shut off neutral pot drive part, theoil settled in the pot 6-8 hours, make oilseparate from soap.
(3)de-coloring:
Pump the oil netralized into decolorizer vessel , samely mixing to rise its temperature to 90 degrees,then mixing for 30 mins,to reduce water to 0.1% ,then put a little clay (decoloring media) 24 % of total oil ,mixing for 30 mins ,to reduce the temperature to 70 degrees, then filte the clay with oil filter,to get the oil decolorized .

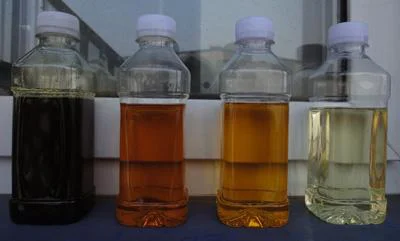

Final oil:

Specification

The specification of crude oil:

Item
Standard
Smell and taste
The original smell and taste of seed oil
Moisture and volatile matter (%)    ≤
0.20
Insoluble impurities (%)                 ≤
0.20
Acid value (mgKOH/g)                  ≤
4.0
Peroxide value (mmol/kg)              ≤
7.5

The specification of refined oil:

Item
Standard
Color (Lovibond Cell 133.4mm)          ≤
R2.0  Y20
Smell and taste                        ≤
No smell and good taste
Transparence                         ≤
Clear and transparent
Moisture and volatile matter (%)          ≤
0.05
Insoluble impurities (%)                 ≤
0.05
Acid value (mgKOH/g)                ≤
0.20
Peroxide value (mmol/kg)              ≤
5.0
Smoke point (°C)                      ≥
215

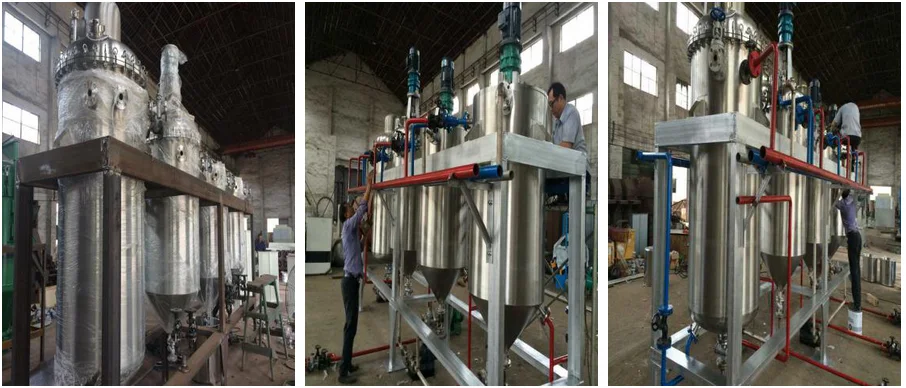

Our factory

Wuhan HDC  is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.

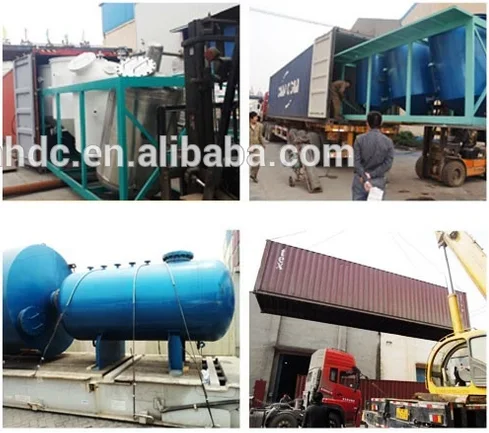

Packing & Delivery
Packaging &Delivery
Size
To be determined
Tool
Ship, express or Air
Packaging &Delivery
The normal package is wooden box. If export to European countries, the wooden box will be fumigated.If container is too weight, we will use per film for packing or pack it according to customers special request.
The normal shipping method is by sea. We also accept Air Transporting if you are in urgent need.

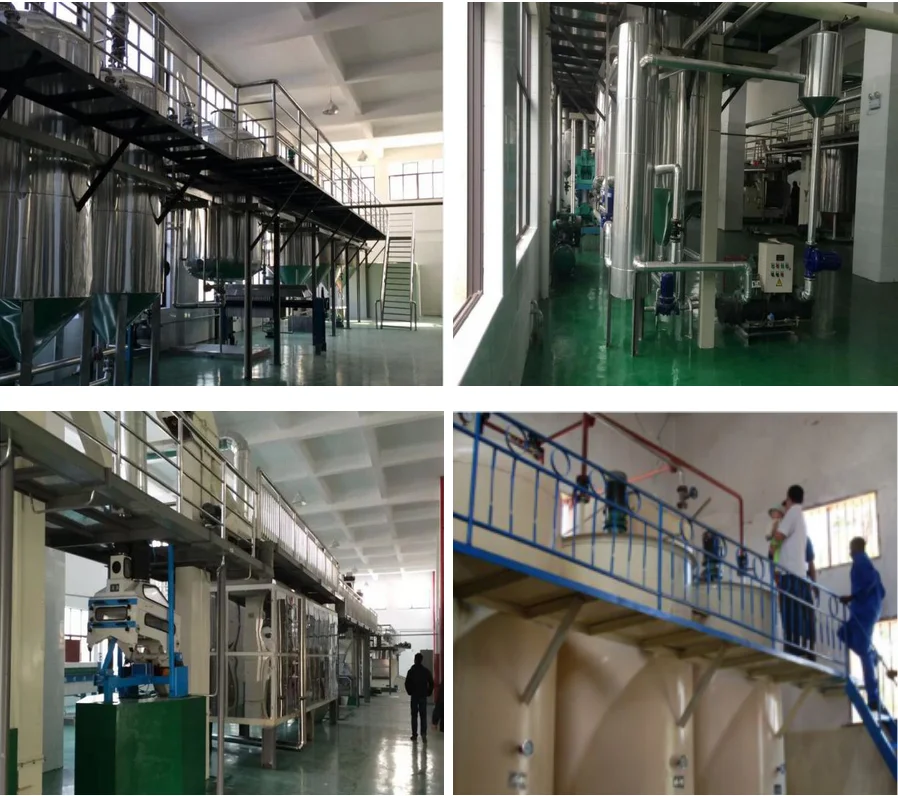

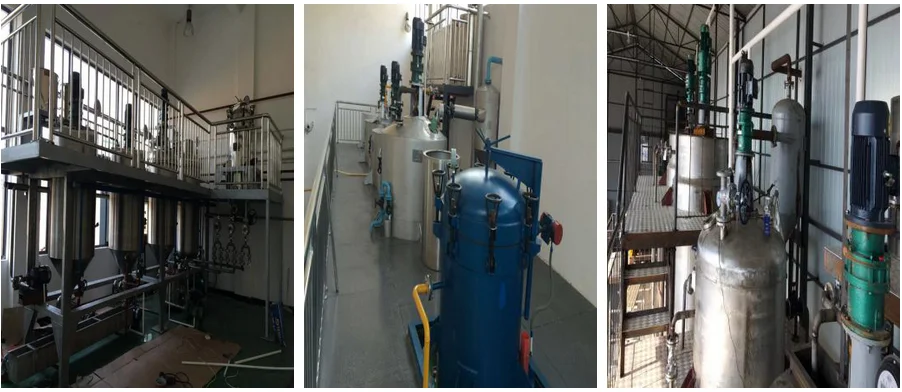

Workshop installation

Certification

FAQ

Q1 : Which kind of other materials can be processed?
All kinds of oil seeds. For example, sunflower seeds, rice bran, corn germ, palm fruit, palm kernel, coconut, peanut, soybean, sesame, cottonseeds, rapeseed, etc.but will have some oil equipment is different,we will design the best palm oil mill for you.
Q2 : What's the capacity of this refined oil mill?
Generally, 10-5000 tons per day. We can also manufacture as per customers' requirements.
Q3: What is the Material of this machine?
Stainless steel and carbon steel,and we accept customization.
Q4 : How long is the warranty?
The main parts of the machine come with one year warranty and after the expiration our engineer is available overseas to do the maintenance work.
Q5 : Can the machine be installed locally?
We can do the turn-key projects or other services according to customers' requirements, according to this condition, our services include manufacturing, purchasing, transporting, installation, training labors etc.
Q6 : How long can we get the goods?
We usually delivery in 3-5 working days, we will inform you shipping time based on your seaport.


Our Service

Pre-Sales Service
* Inquiry and consulting support.
After-Sales Service
* Training how to install and function the machine.
* Engineers available to service machinery overseas.
* 12 months warranty and life spand service available.
* Flowchart and factory design.
* View our Factory.
